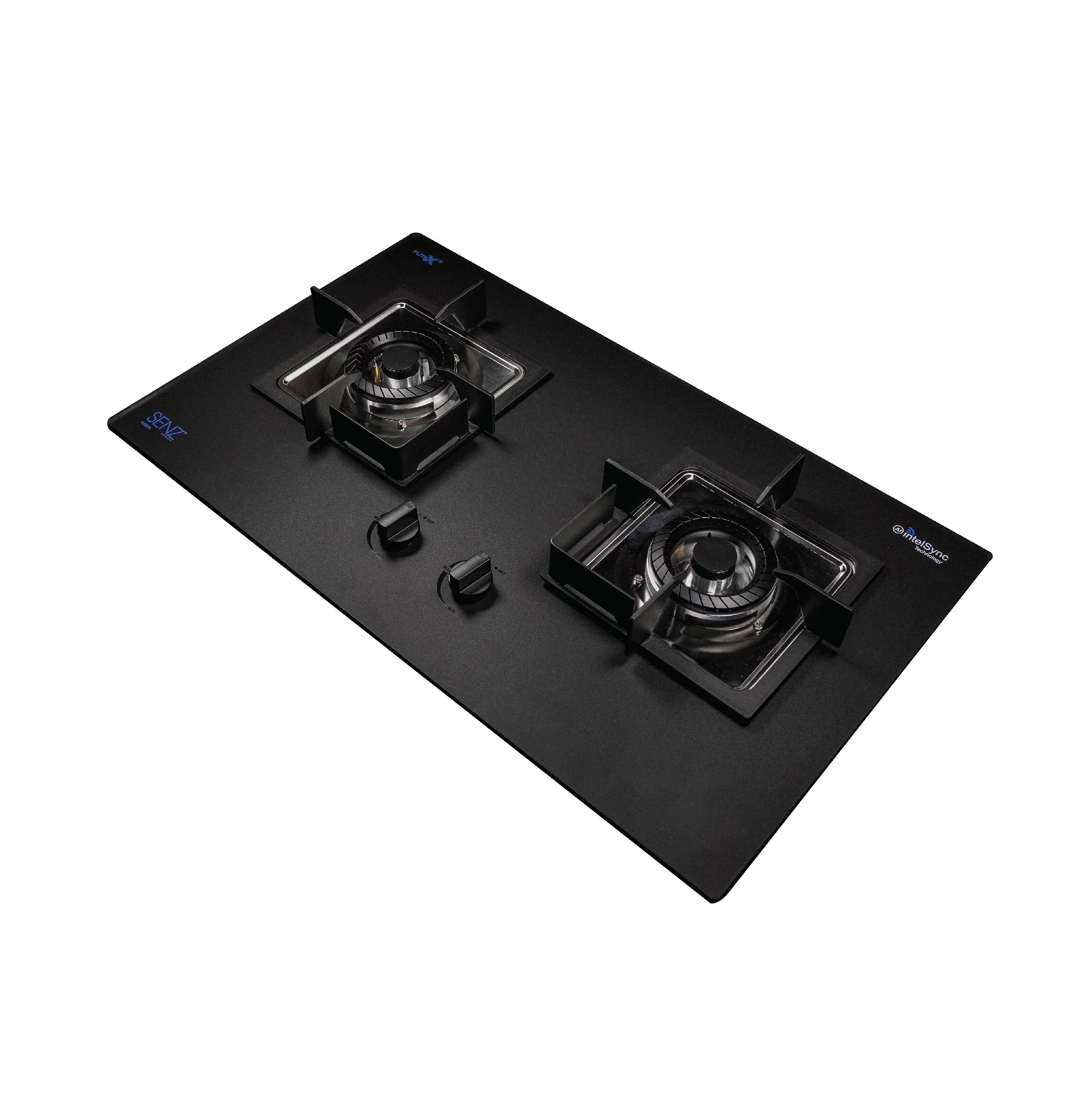

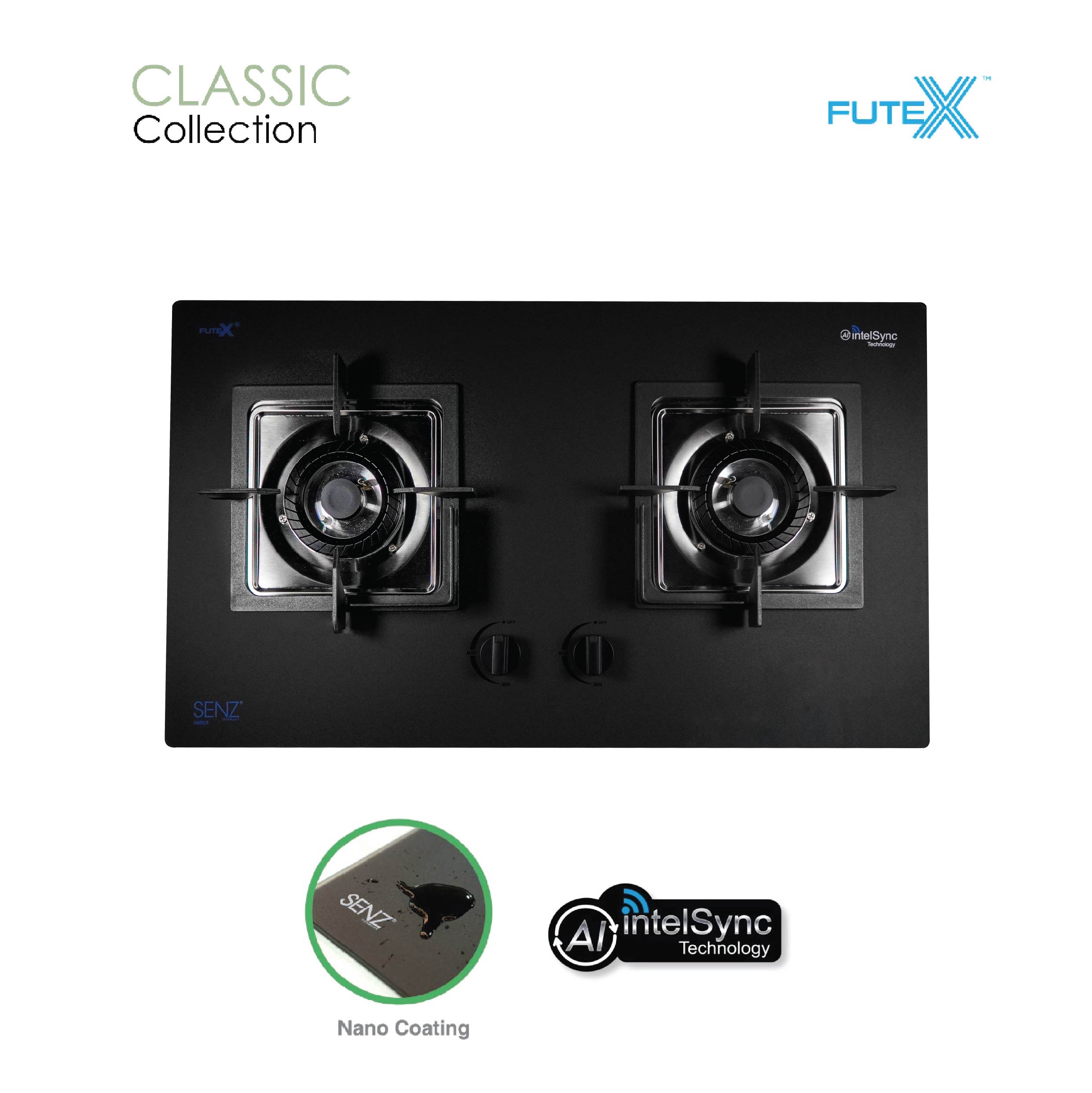

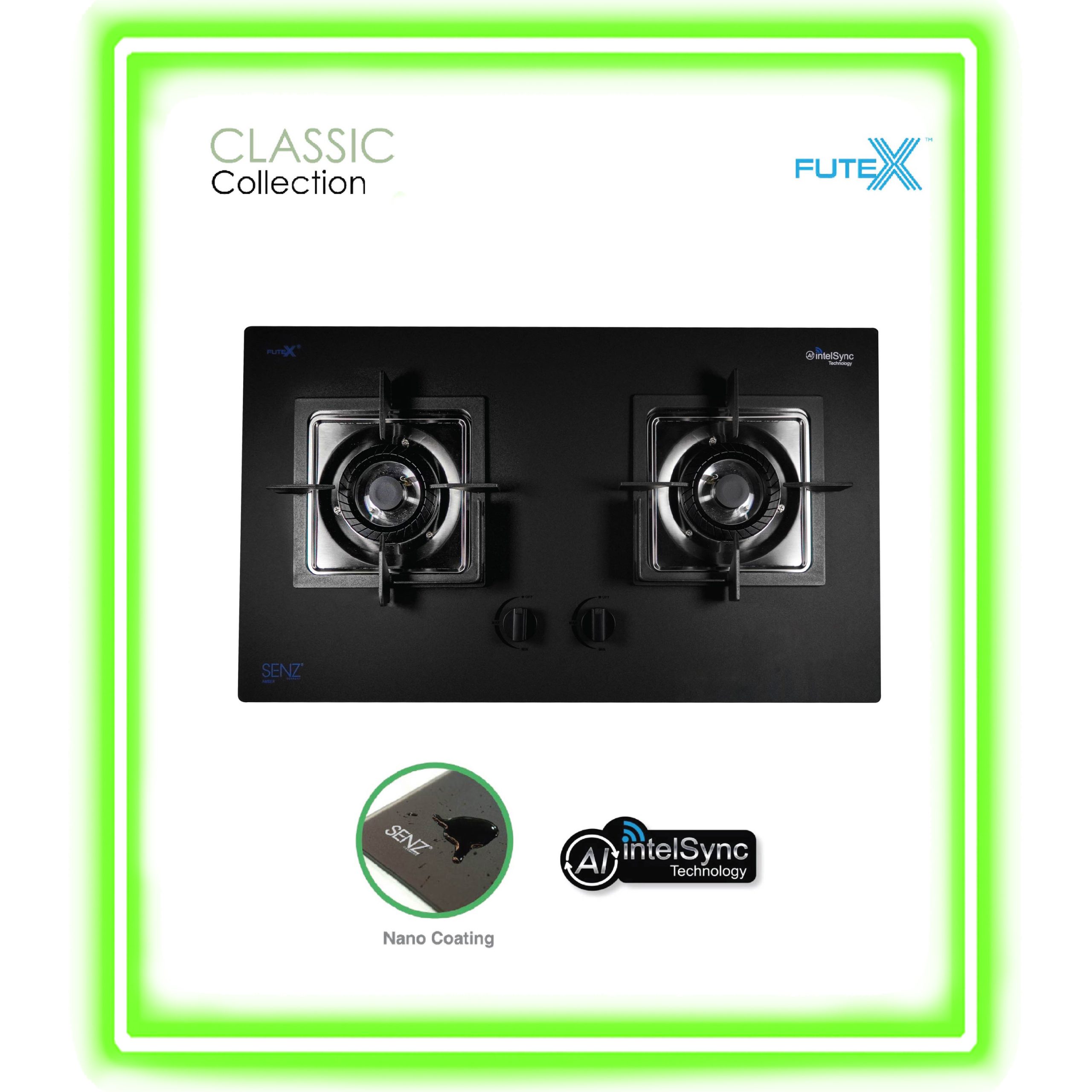

SENZ AMBER intelSync Twin Burner Gas Stove with Nano Coating

Model No: SZ-GS6890FL

Key Features

1. Equip with intelSync Technology – function ONLY available when pair with ENZO cooker hood
   • Smart AI ON / OFF Function – Hood will switch ON / OFF automatically when you turn on your RUBY gas stove
2. 5.0kw/h Heat Intensity
3. Safety Valve – prevents unintentional gas leaks
4. 10 Seconds Auto Cut-Off – stops gas flow if the flame goes out unexpectedly due to wind or water (Flame Failure Device)
5. NANO Coating Glass – heat resistance 8mm tempered glass FuteX, repels water and oil, resists stains, and stays spotless for easier cleaning and sleek style

• Battery Operated Auto-Ignition
• Flexible Base Design – can fit in variety of built-in hole size
• Removable Burner Cap – detaches easily for hassle-free cleaning
• Square Wok Rack Design

Compatible intelSync Cooker Hood Model

• SENZ ENZO: SZ-CH8360AC
• SENZ ENZO DC: SZ-CH8360iDC

Installation & Compatibility

• Gas Type – LPG
• Gas Pressure –  2800 kPA
• Glass Size – 780mm (W) x 460mm (L)
• Built-in Hole Dimension

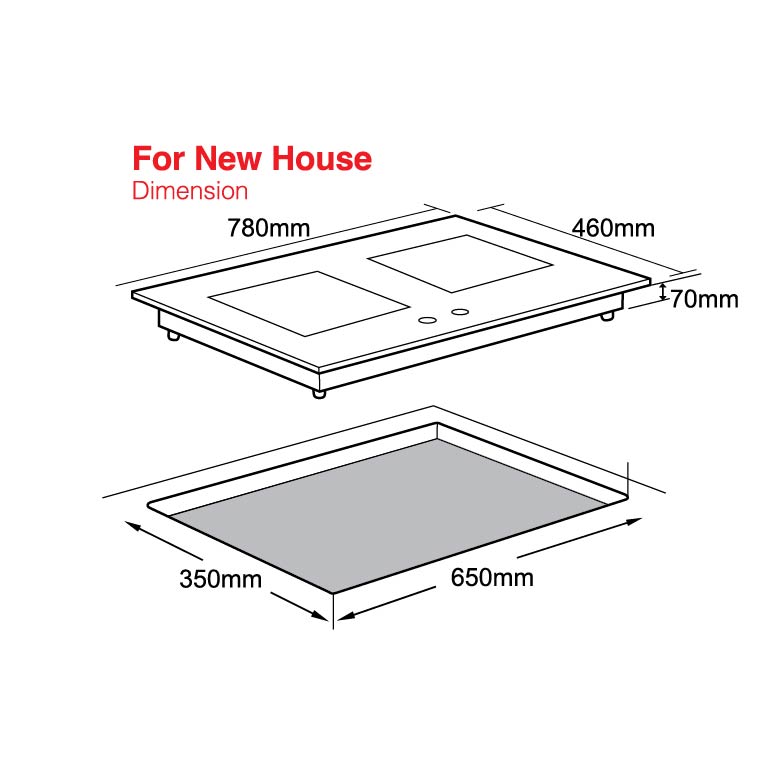

  – For New House: 650mm (W) x 350mm (L)

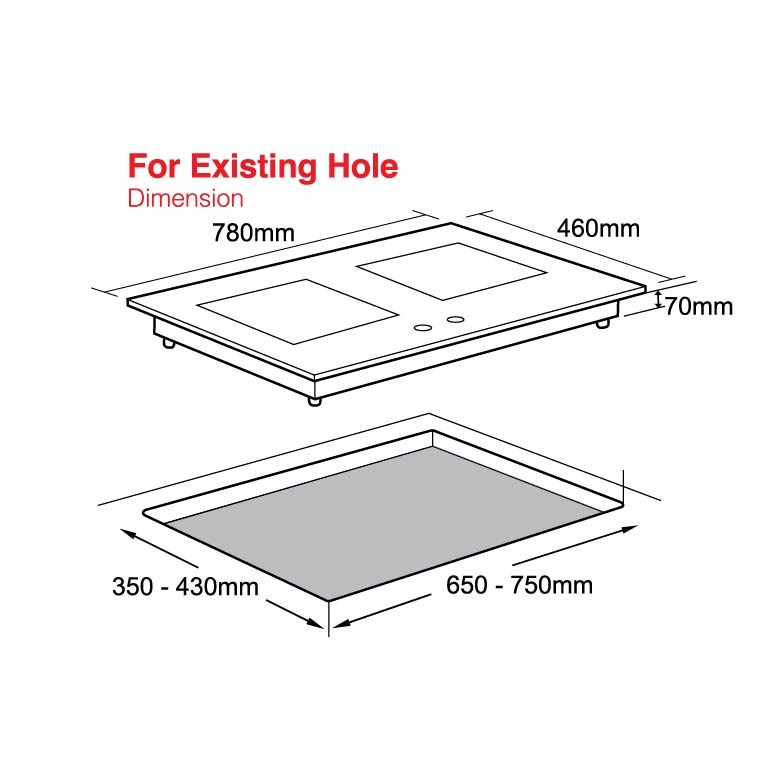

  – For Existing Hole: 650-750mm (W) x 350-430mm (L)
• Installation Type – Free Standing or Built-In

CAUTION: Please ensure that the burner cap is placed securely and evenly to prevent any gas leaks and potential fire hazards.

WARNING: If the burner does not ignite after pressing the knob for 5s, RELEASE the knob immediately and try again. DO NOT hold the knob for too long, as gas may build up and causes sudden flame.
