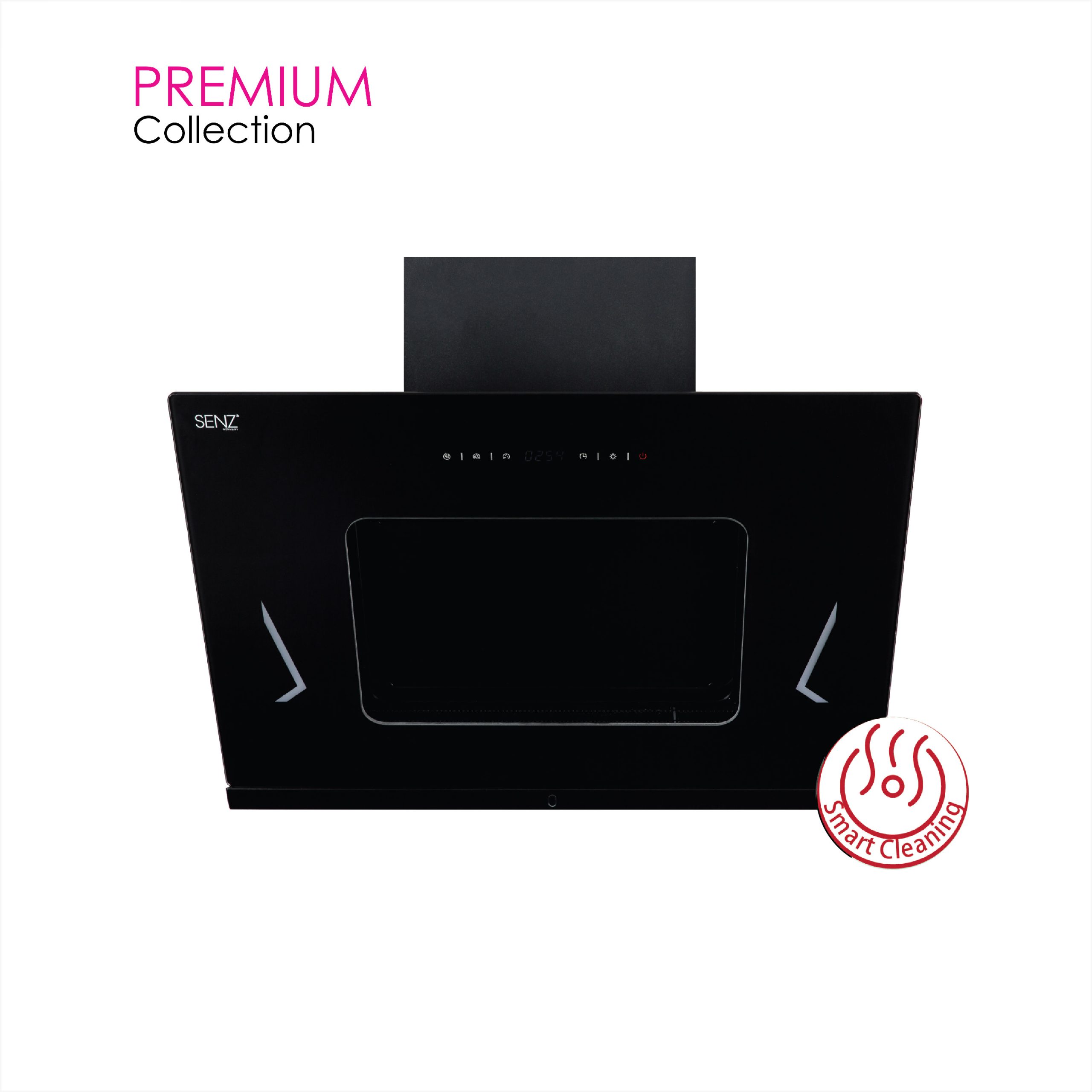

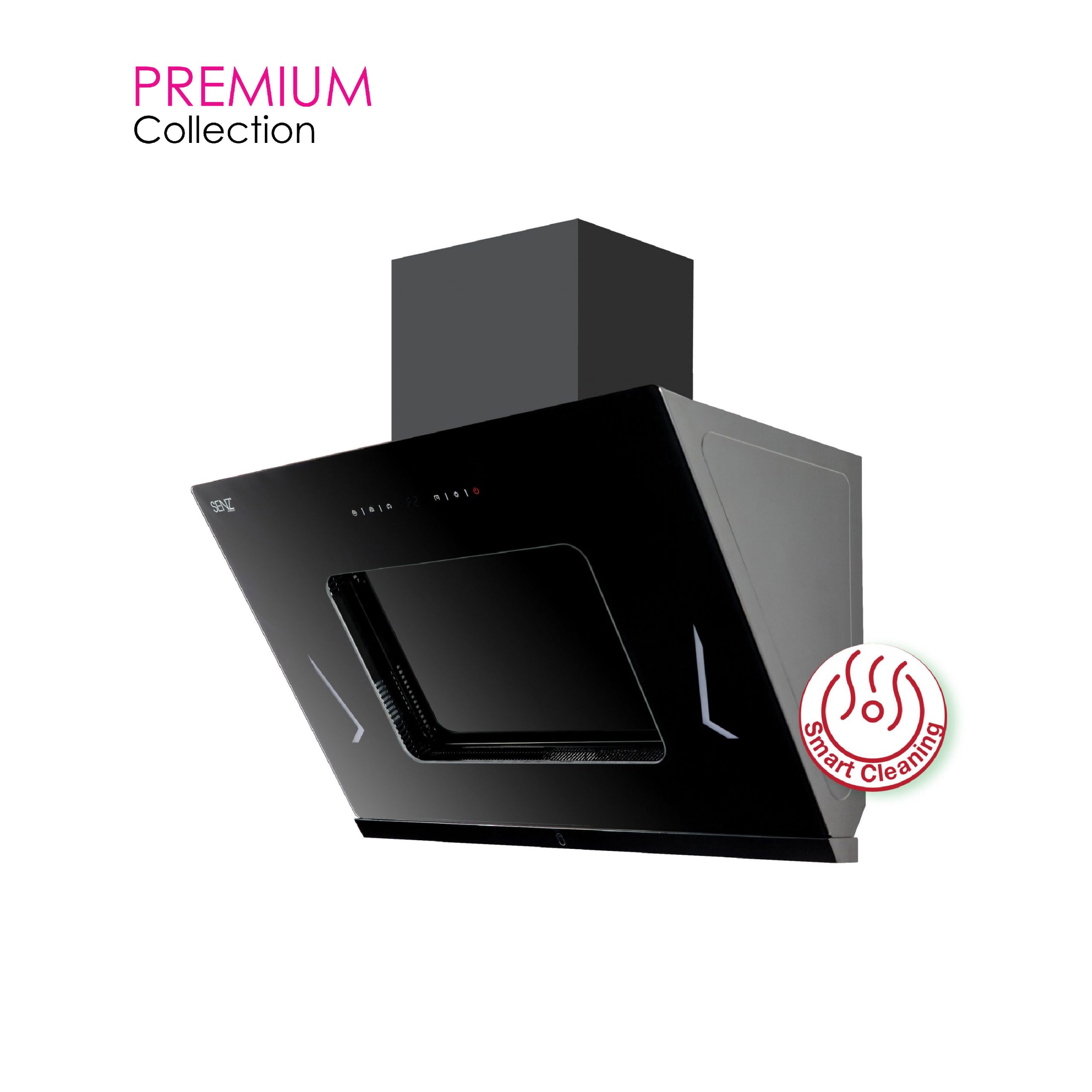

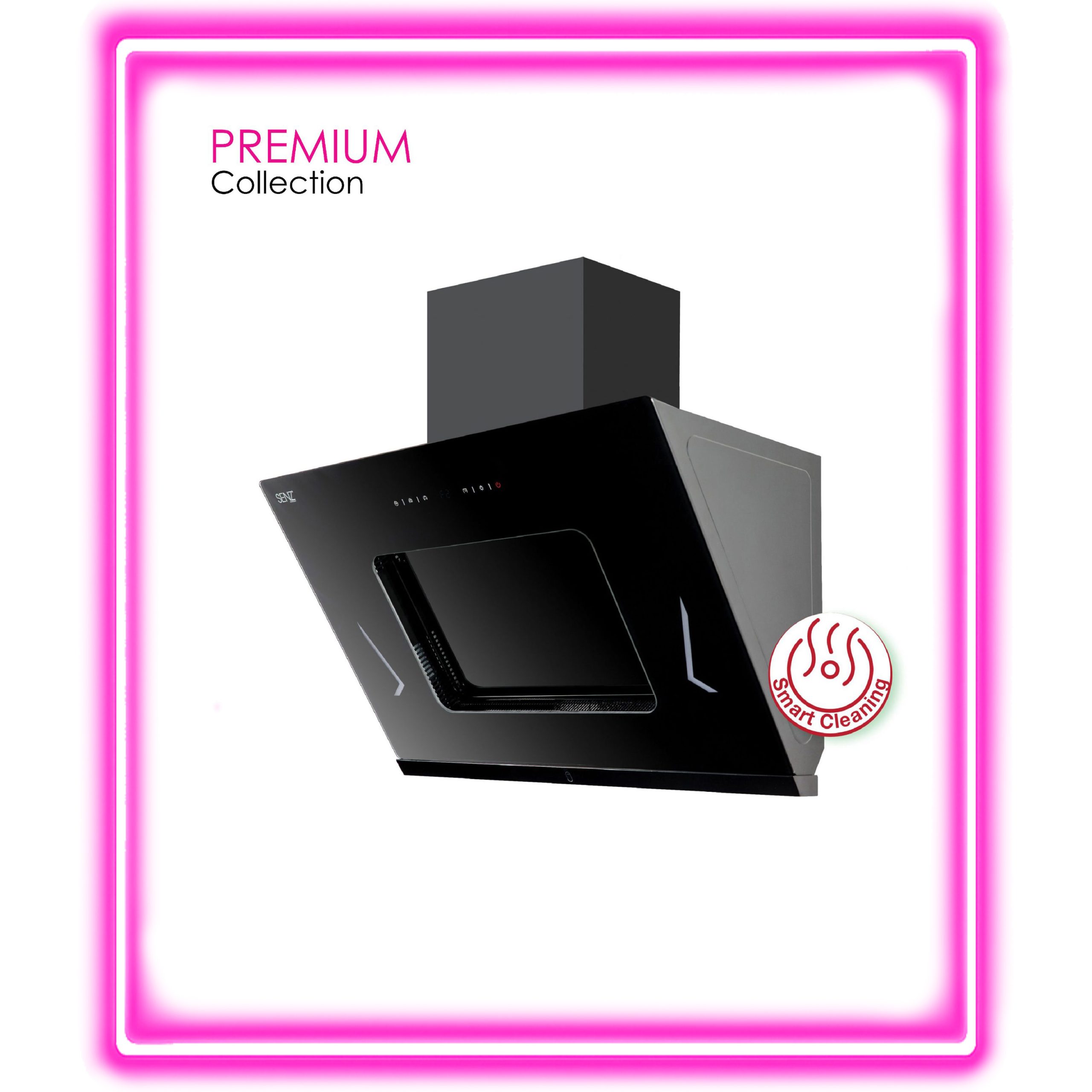

Model No: SZ-CH6833AC
Key Features
- Latest Angled Design – maximizes headroom and comfort while improving smoke capture efficiency

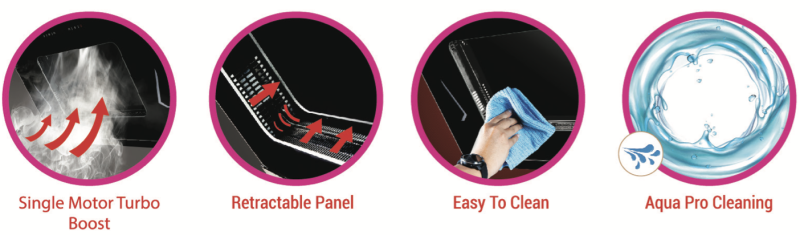

- 1700 m3/h Suction Power + Turbo Boost – instantly removes smoke, perfect for medium to heavy cooker
- Water Auto Cleaning Function – uses water spray and centrifugal force to break down and remove grease automatically. Delivers powerful self-cleaning with easy grease extraction
Additional Practical Features
- Retractable Panel Design – panel slides inward during use for better smoke capture, retracts when off for a sleek, space-saving look
- 5x Larger Metal Oil Cup – reduces cleaning frequency
- LED lighting – bright and even illumination, glare-free
Installation Accessories Included
- 2 pcs Metal Chimney Cover
- Stainless Steel Wall Cap
- 3 meters Aluminum Hose (hose dimension: 180mm (7”))
- Ducting/Coring Size: 150mm = 6 inches (includes connector to adapt from 180mm to 150mm for easy installation)
Recommended Installation Height
- From bottom of hood to your counter top
– For Electric Hob: 300mm ~ 450mm
– For Gas Hob: 400mm ~ 500mm
Plug Used
