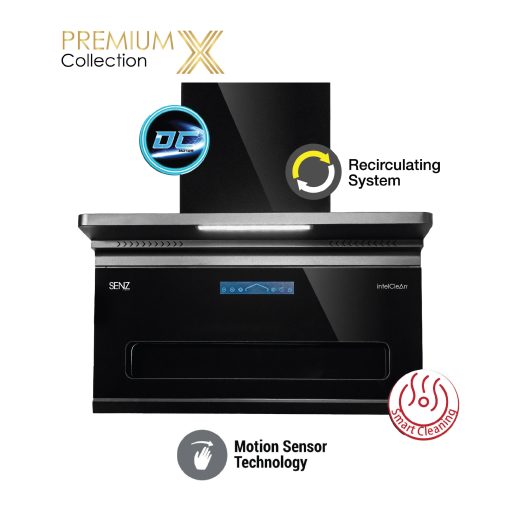

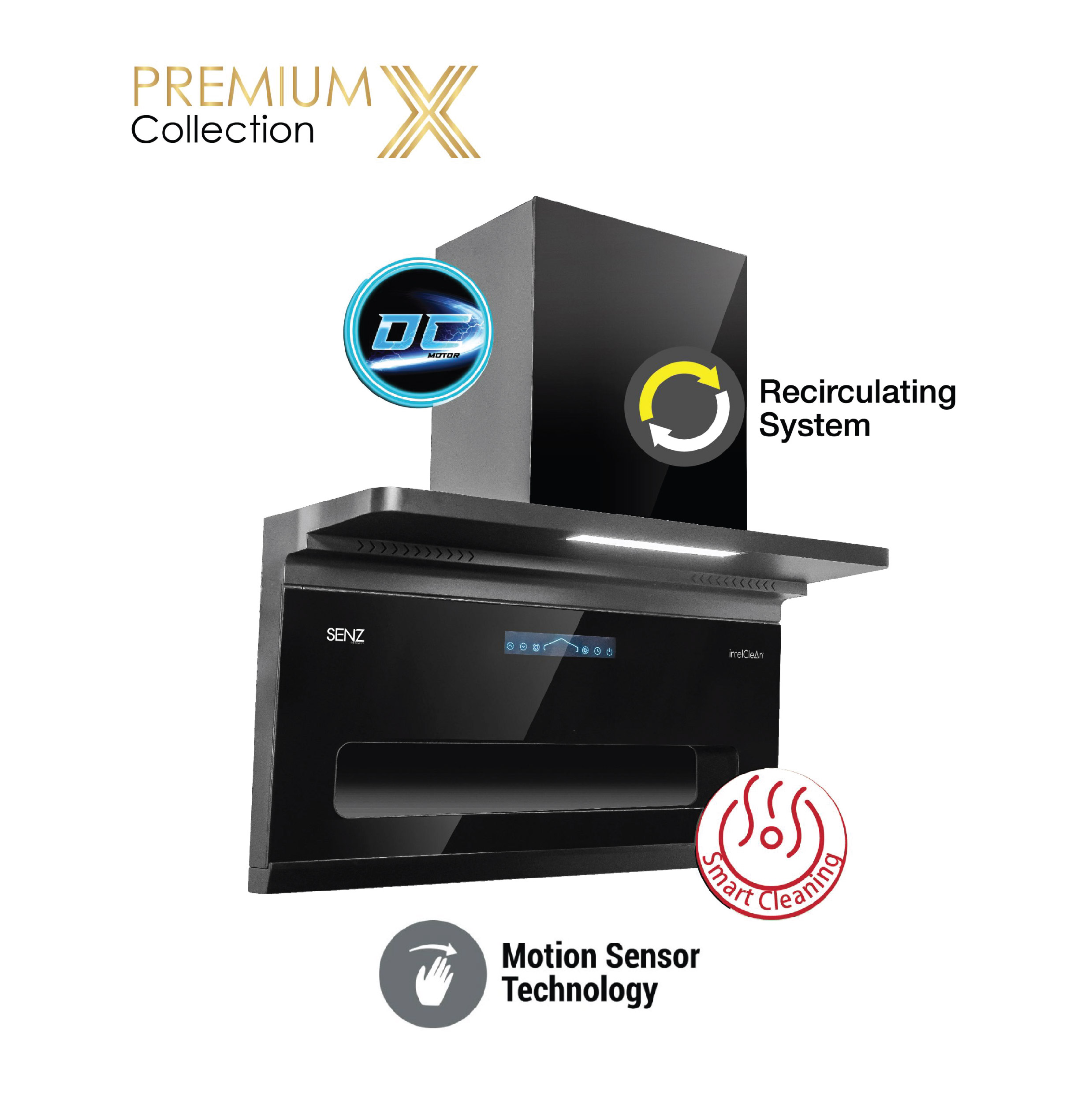

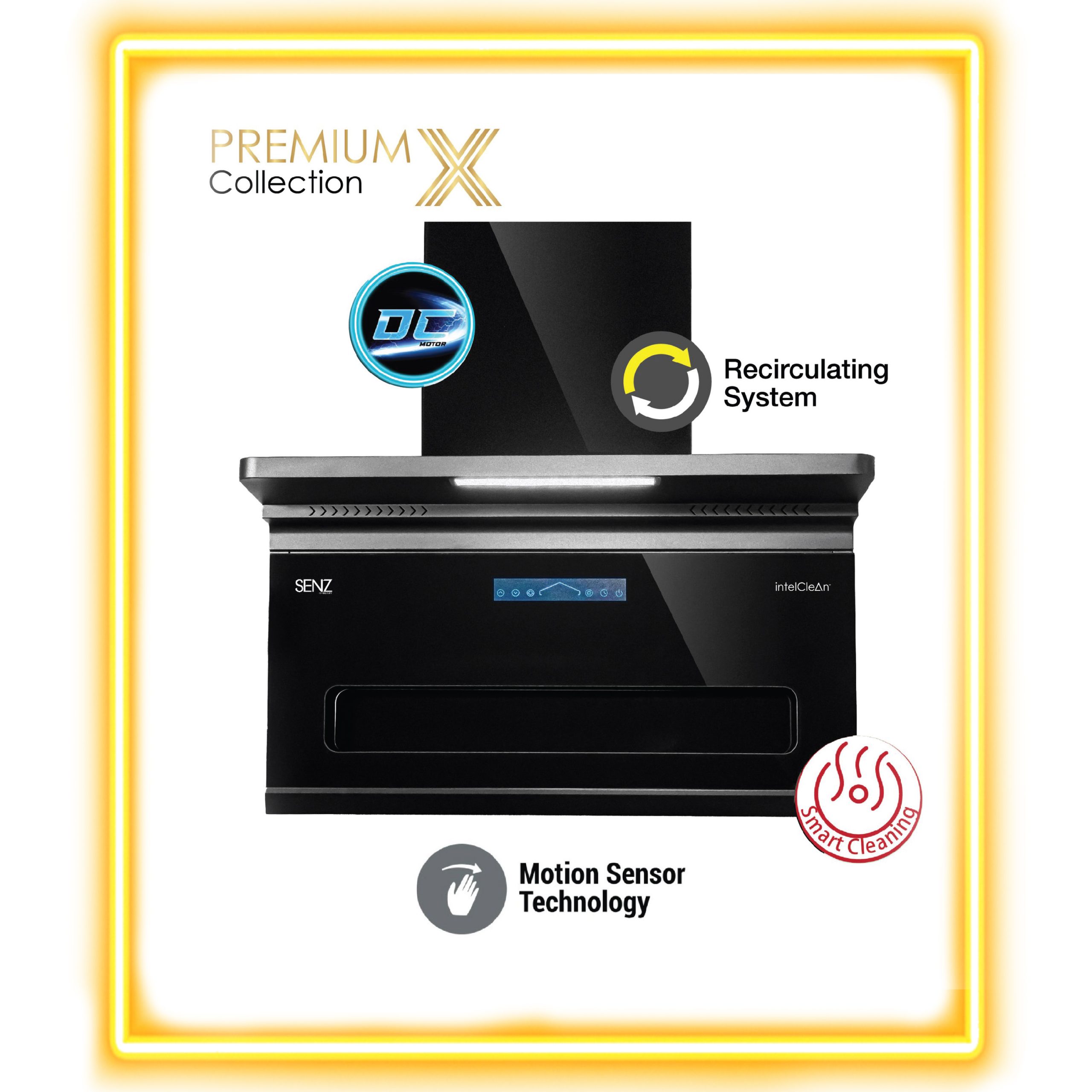

SENZ VELOZ L Shape Design Heat Pro intelClean Cooker Hood

Model No: CH9810DC

Key Features

1. AI Grease Smart Function – able to detect the level of grease and adjust its suction power accordingly
2. 2000 m3/h Suction Power + Turbo Boost – instantly removes smoke, perfect for heavy cooker
3. Motion Sensor Technology – operate without touching, just wave your hand to activate the hood easily, even with oily hands!
4. Ultra-Quiet Operation – as low as 45dB, enjoy conversation in the kitchen without disruption
5. Heat Auto Cleaning Function – uses high-heat dissolves grease automatically, no dismantling, no manual cleaning, ensures long-lasting performance

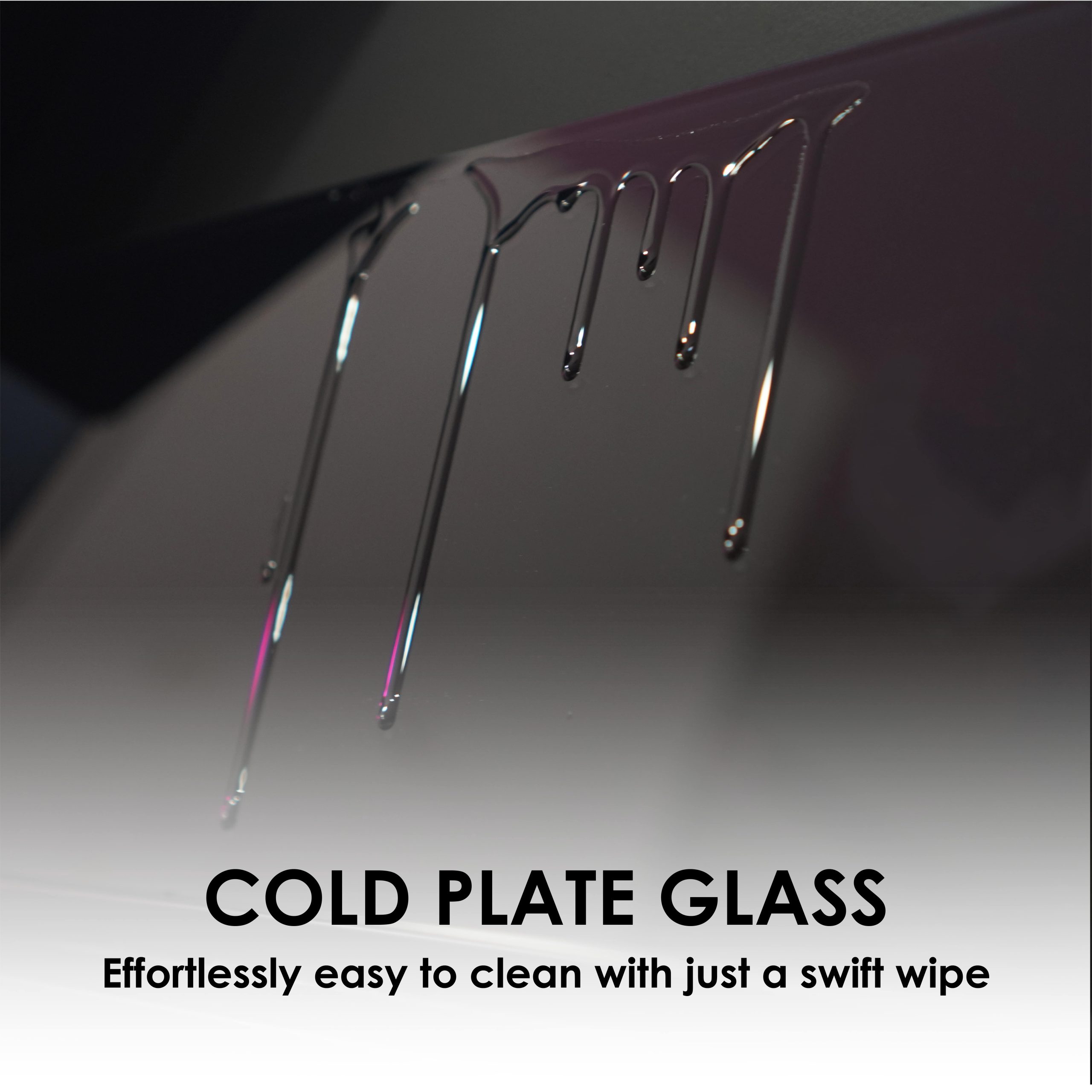

6. Cold Plate Glass – intelligently designed to condense and guide grease and vapors into the oil cup, reducing mess and simplifying cleanup

Additional Practical Features

• BLDC Motor – more energy saving, with up to 1900Pa
• 5x Larger Metal Oil Cup – reduces cleaning frequency
• LED lighting – bright and even illumination, glare-free
• Sleek L-Shape Design – modern and slim, it saves space and fits beautifully into your kitchen

Installation Accessories Included

• Chimney Cover
  – 1st Glass Chimney
  – 2nd Metal Chimney
• 1 pcs Charcoal Filter (only for recirculating system/ductless)
• Stainless Steel Wall Cap
• 3 meters Aluminum Hose (hose dimension: 180mm (7”))
• Ducting/Coring Size: 150mm = 6 inches (includes connector to adapt from 180mm to 150mm for easy installation)

Recommended Installation Height

• From bottom of hood to your counter top
  – For Electric Hob: 300mm ~ 450mm
  – For Gas Hob: 400mm ~ 500mm

Plug Used





USER MANUAL
