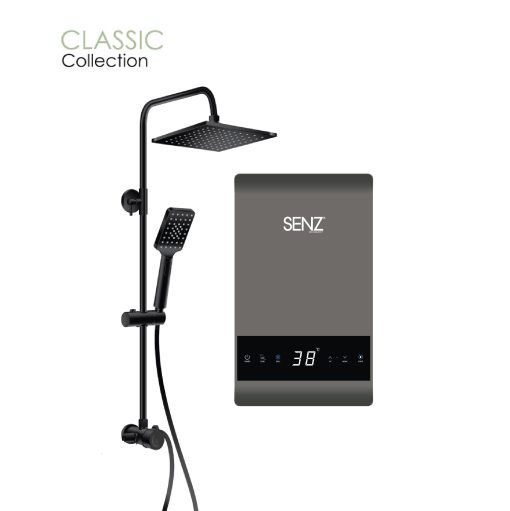

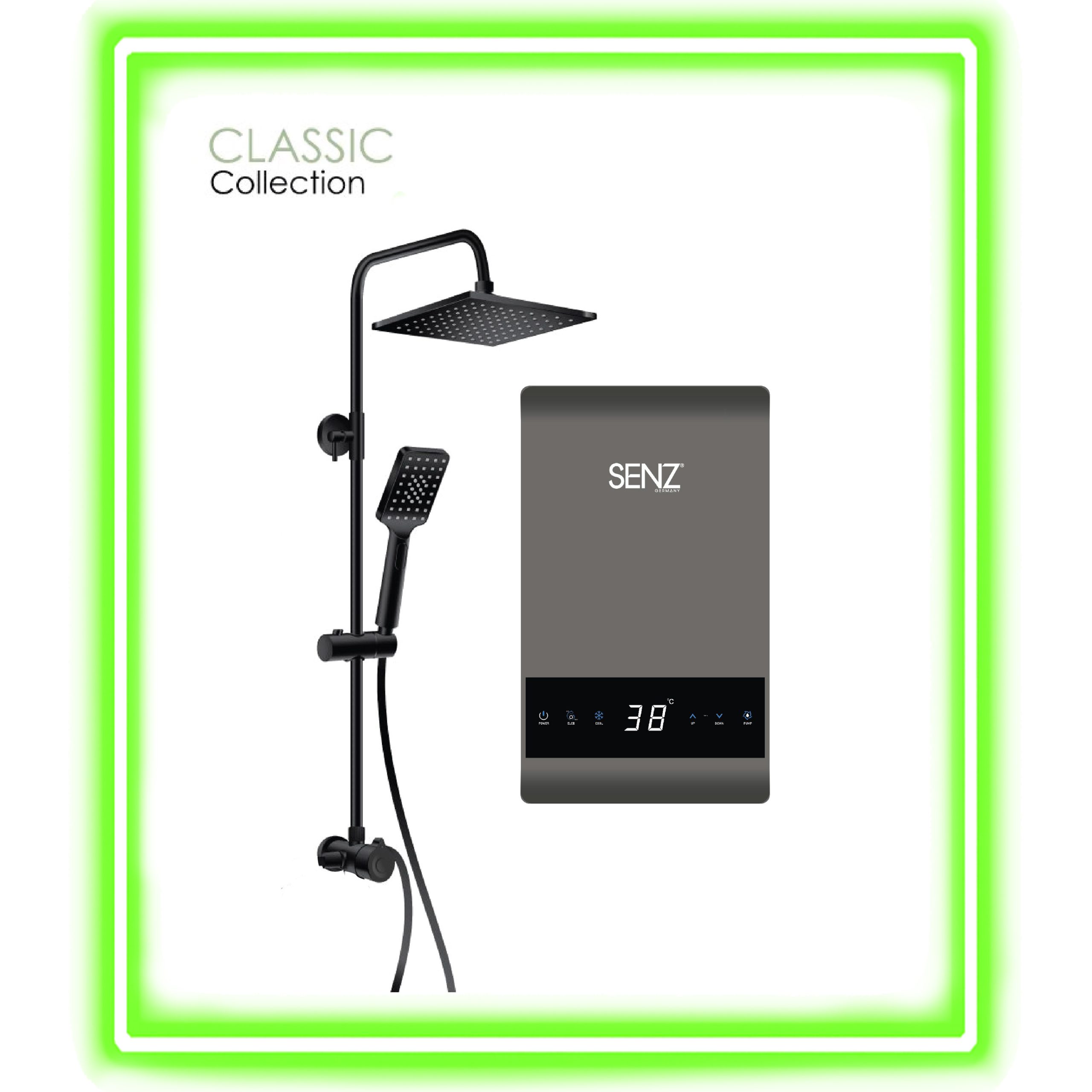

SZ-WH1018-MT EcoPro Fully Digital Water Heater – Horizon Manual Valve (Titanium)

Model No: SZ-WH1018-MT

Key Features

1. Water Heater Design – Horizon / Vertik
2. Design Color – Titanium
3. More Powerful DC Pump – stronger water flow, stable pressure
4. Fully Digital System – Enjoy precise temperature control with a modern digital display, giving you full control over your shower experience.
5. Precise Temperature Display – Monitor your water temperature with absolute accuracy, ensuring the perfect shower every time.
6. Anti-Scalding Technology – Worried about accidental burns? EcoPro automatically cuts off the heating element when the water temperature reaches 45°C, ensuring a safe shower experience.
7. Overheat Protection – To prolong the lifespan of the heater and protect internal components, EcoPro stops the pump and heater when overheating is detected.
8. Thermostat Protection – For added durability, EcoPro automatically shuts off the heating tank when it reaches 85°C, protecting the heating element and enhancing performance.
9. Auto Earth Wire Detection with Alarm – Safety first! EcoPro comes with a built-in alarm system that alerts you in case of faulty wiring, providing an extra layer of protection.

Installation & Compatibility

• Voltage/Frequency – 220V-240V/50Hz
• Power Rating : 4.5kW, 240V 50/60Hz
• Water Flow Rate : 2 litre/min
• Water Pressure : 20kPa (0.2bar / 2.9psi)
• Water Pressure : 400Kpa (4 bar / 58psi)

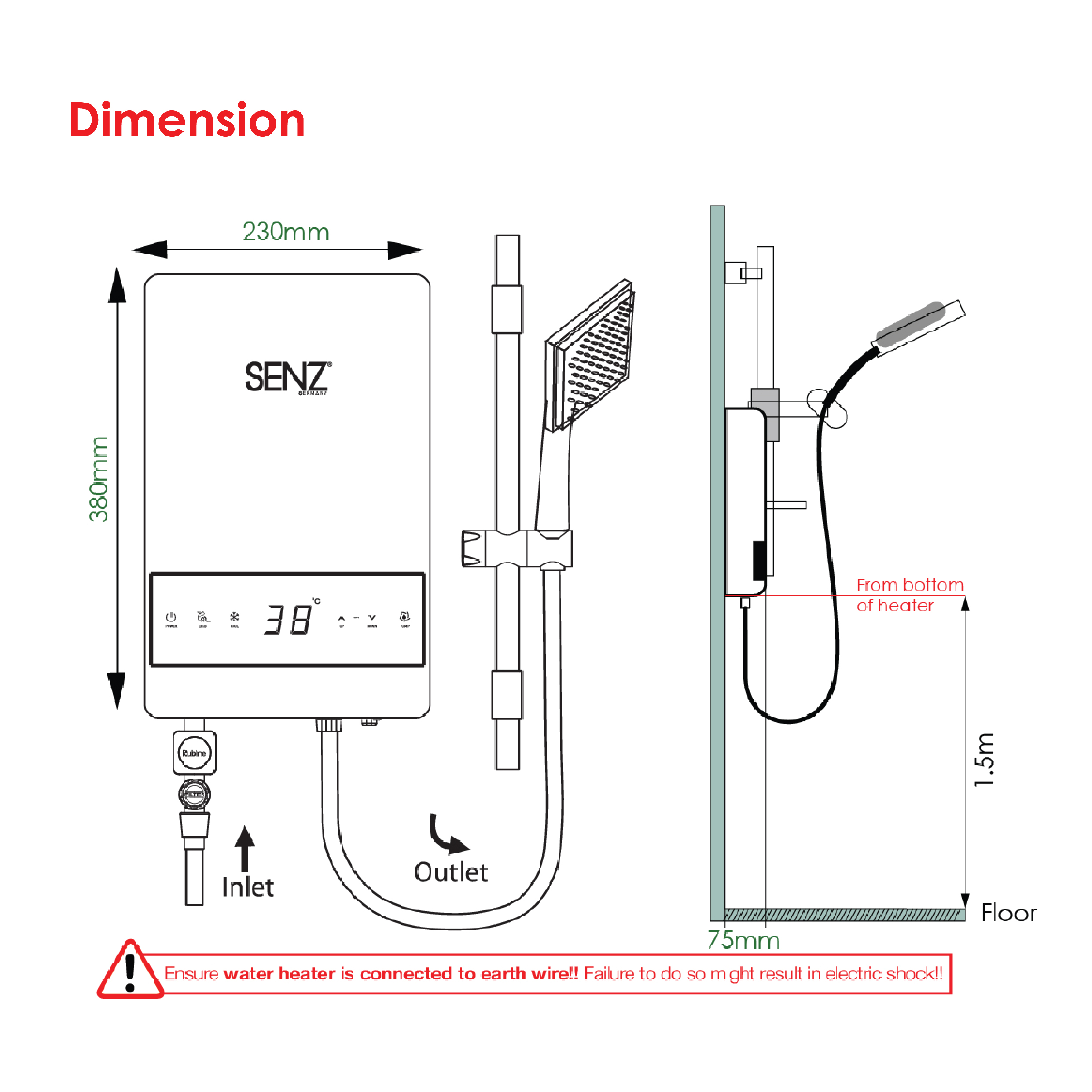

• Heater Dimension (mm) : 380 (H) x 230 (W) x 75 (D)
• Heater Nett Weight : Horizon Pump – 1.98kg

Recommended Installation Height

• From bottom of heater to floor 1.5m

Accessories Included

• Rain Shower x1
• Rail Bar x1

Plug used

Product Liability Coverage: Our SENZ EcoPro products are backed by product liability coverage of up to RM1,000,000

WARNING:

Ensure water heater is connected to earth wire!! Failure to do so might result in electric shock!

For Digital Valve model, water will not flow if there is no electricity supply, as the valve requires power to operate



USER MANUAL
